Project Evidence
Jinduo and its joint-venture partner have pioneered the application of integrated refrigeration and ice-production systems in the concrete sector. The project scope includes custom-designed ice-making equipment with 25% power savings, automated storage bins, and high-capacity conveying for controlled ice discharge. After operation at two installed locations, the system recorded a 25% reduction in ice-production cost per tonne.
Explore the selected projects below, or contact us to request the closest available reference for your capacity, application, and site requirements.
Field References
These genuine Jinduo project references show how Jinduo and its Hong Kong joint-venture engineering partner deliver integrated refrigeration and ice-production systems for concrete applications. The approved project description states 25% power savings, and after operation at two installed sites the system recorded a 25% reduction in ice-production cost per tonne. The selected projects below demonstrate capacities up to 150 t/day, automated storage and conveying, and two-stage chilled-water engineering.

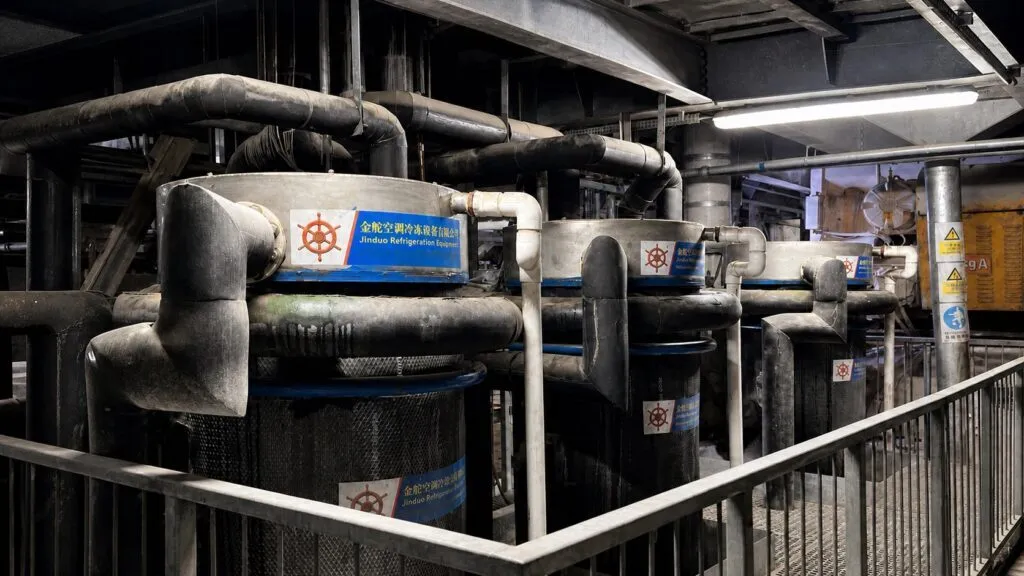

This 100 t/day tube-ice system was commissioned in 2019 for a concrete batching plant in Tsing Yi, Hong Kong. It includes a fully automated variable-pitch screw-bed ice store with a capacity of 45 t and a screw conveyor that feeds the day tank and supports external loading for other batching plants.

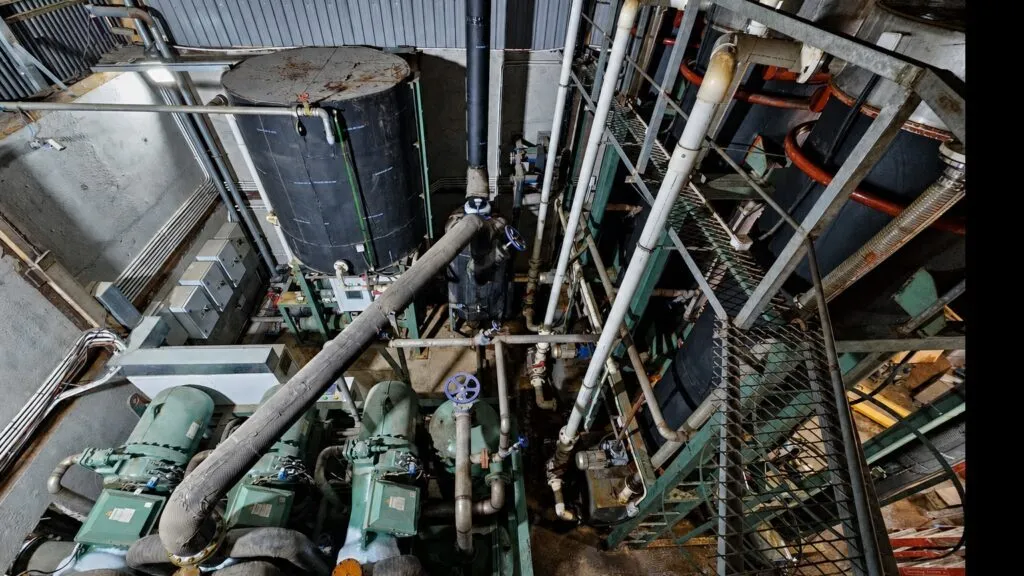

View Project DetailsCommissioned in 2021 in Sheung Shui, Hong Kong, this commercial tube-ice plant uses three 50 t/day tube-ice units for a combined design capacity of 150 t/day. Its 200 t ice-storage system supplies nearby concrete batching plants.

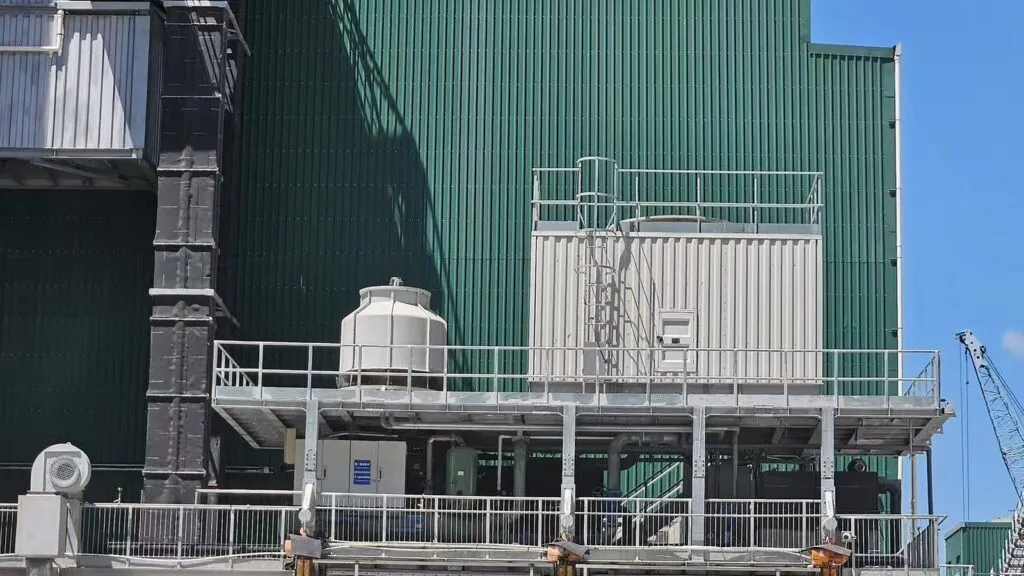

View Project DetailsJinduo designed and supplied this containerized two-stage chilled-water system for a batching plant in Hong Kong. A flooded evaporator cools water from ambient temperature to 4°C before a submerged dry-expansion evaporator lowers it to 0°C at a design flow of 27 m³/h.
View Project DetailsVerified Project Basis
Every published case on this page is a Jinduo project, checked against project-specific records and photographs available for public release. Performance statements are included when they form part of the approved company project record; they describe the referenced installations and are not universal performance guarantees.
Client names, exact addresses, commercial terms, and confidential documents remain withheld unless approved for release.
Project Delivery
Large refrigeration projects require coordinated engineering, manufacturing, integration, and site support. The exact Jinduo scope is stated on each case.
01 · Engineering
Cooling duty, operating conditions, equipment configuration, interfaces, drawings, and documentation aligned with the project requirement.
02 · Manufacturing
Ice-making and refrigeration equipment packages built and checked against the agreed project specification.
03 · Integration
Refrigeration, storage, conveying, controls, utilities, and site interfaces coordinated as one system where included in scope.
04 · Site Support
Site installation, commissioning, and handover support provided where included in the contracted Jinduo scope.
Plan Your Project with Jinduo
Share your required capacity, operating conditions, utilities, and site constraints. Our engineering team can compare them with relevant Jinduo project experience and define an appropriate equipment, integration, and documentation scope.
Discuss Your ProjectPlease include:
Jinduo will clarify the proposed equipment, performance basis, interfaces, testing, documentation, and delivery scope in the quotation.
