JDT Series · Jinduo Cooling

Tube Ice
Machines

Your ice demand.
A system sized around it.

From packaged-ice production to industrial cooling, Jinduo’s JDT series brings ice-making equipment, refrigeration and controls into a configuration matched to your capacity and site.

1–60 t/24h: Capacity classes
11 models: One equipment series

Model selection starts with daily output, water conditions and available utilities.

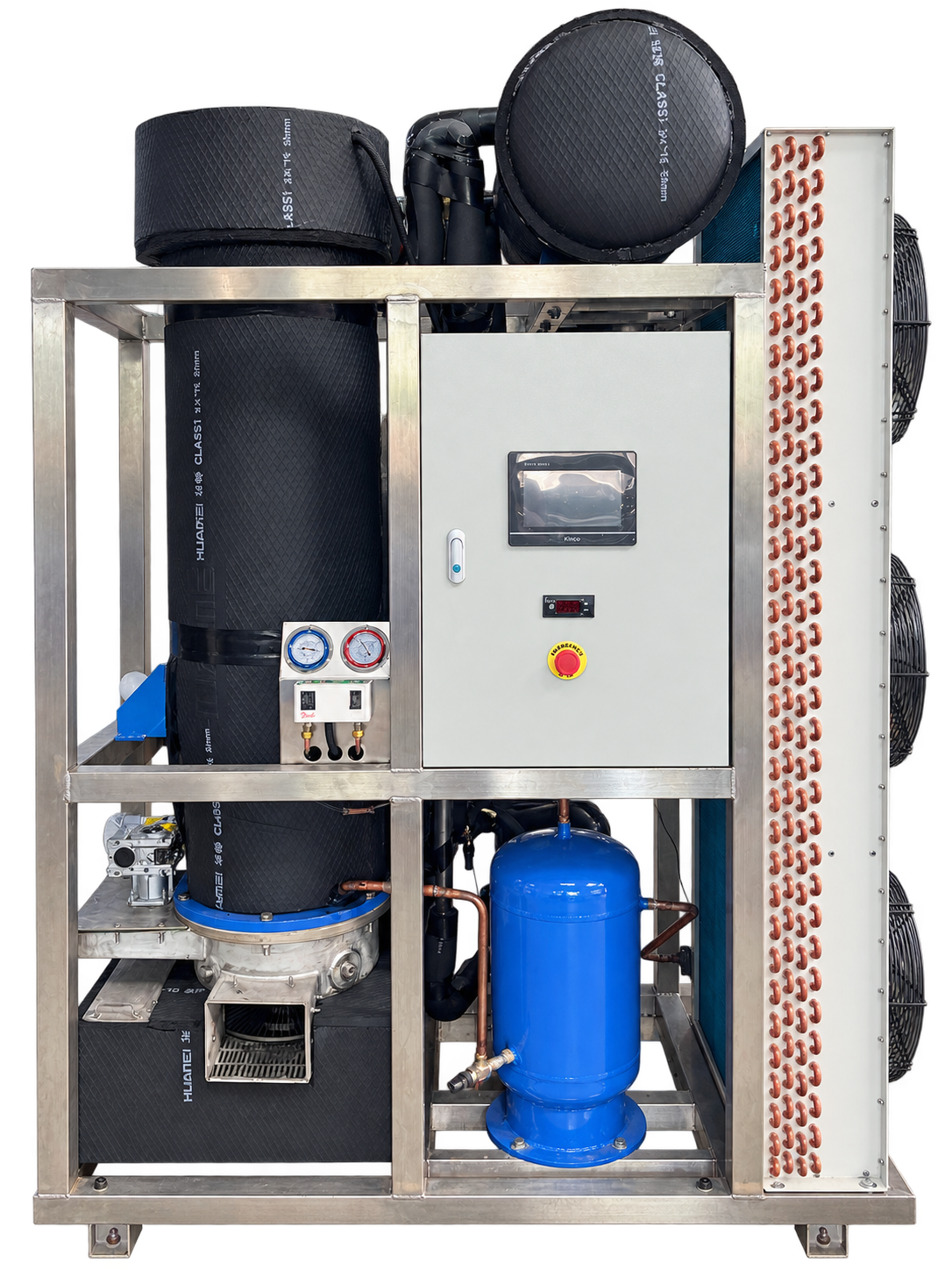

Front view of a Jinduo JDT10 tube ice machine showing its control cabinet, ice outlet and refrigeration equipment — JDT10 · 1 t/24h capacity class. Configuration varies by model.

JDT20 · Production footage

See the ice.
See it in motion.

Watch tube ice leave the machine, then look closer at its shape and open centre. These short clips show actual JDT20 ice production.

Find Your Capacity

JDT20 footage · 2 t/24h capacity class. The JDT10 equipment shown above is a separate model.

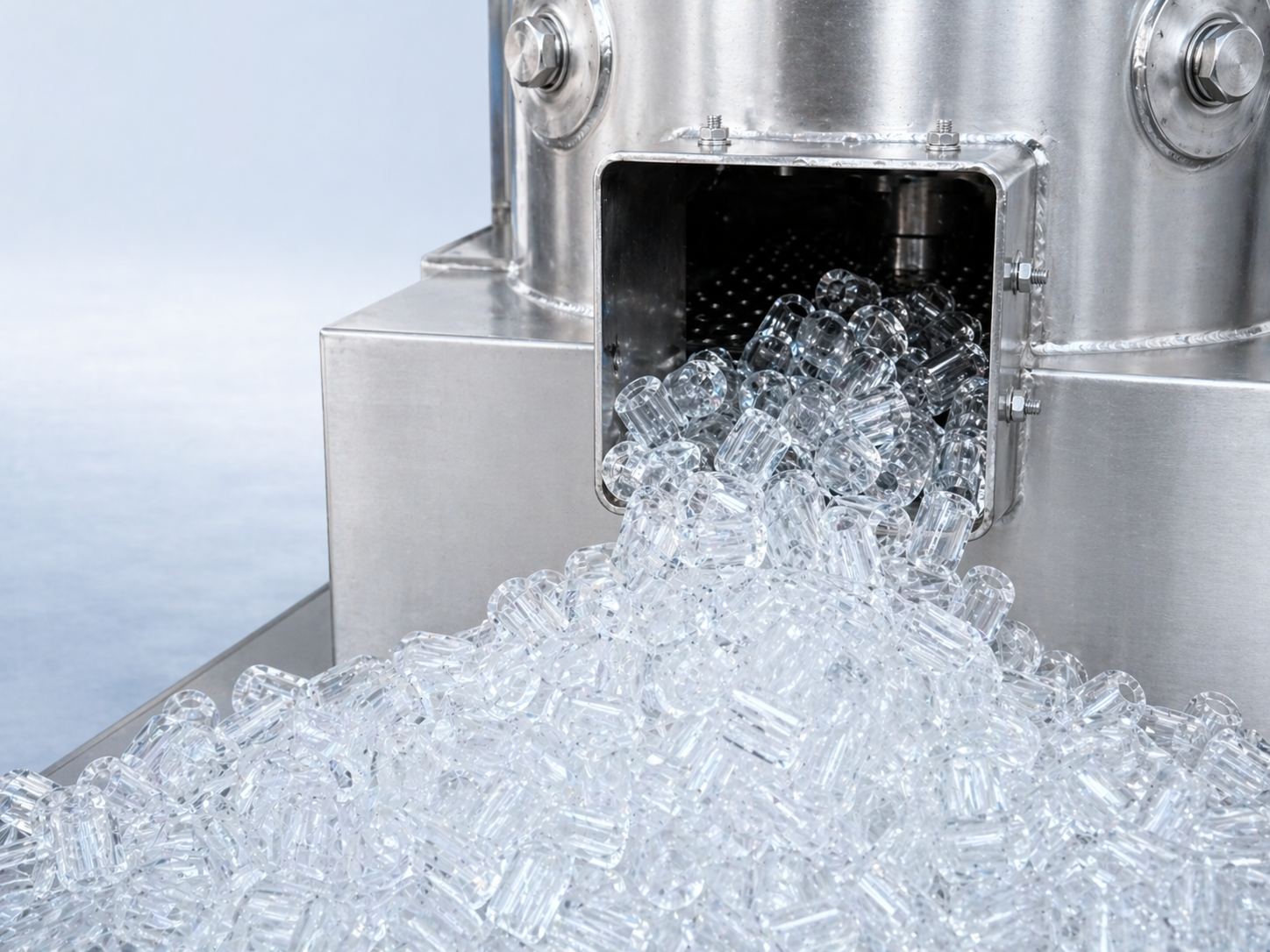

01 / ICE DISCHARGE

From the machine to the ice bin.A closer view of tube ice discharge.

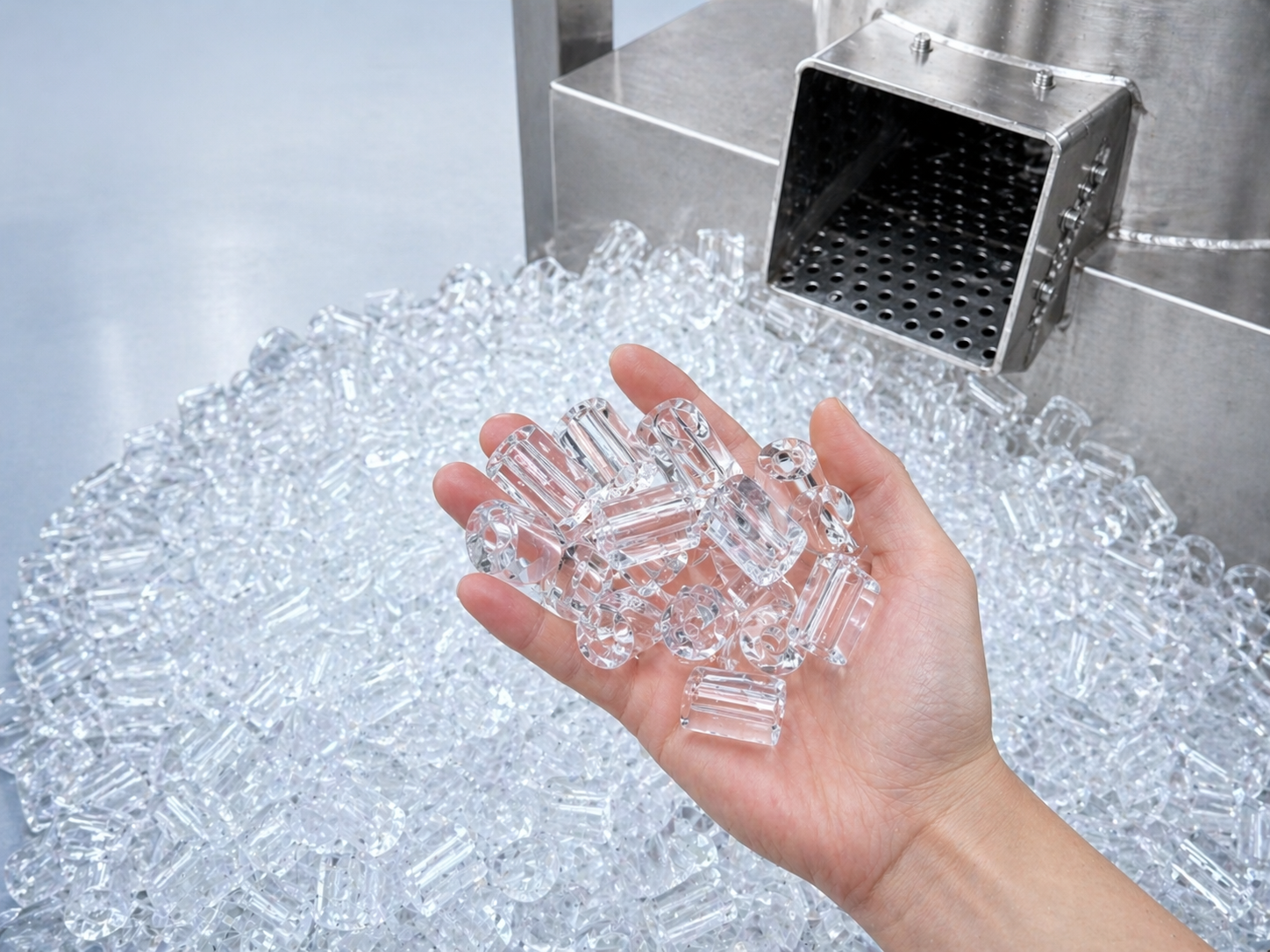

02 / UP CLOSE

Take a closer look at tube ice.Discharge and freshly produced ice.

Tap a model row for details; swipe to compare

JDT tube ice machine model selection. Design capacities at the stated water and ambient conditions. Select a model for more options.
Model	Capacity t/24h	Condenser	Ice size mm	Refrigerant options
JDT10	≥1	Air-cooled	22 / 29	R22 / R404A / R507 / R407C
Optional condenserWater-cooledOptional compressor Equipment dimensions (L × W × H)1620 × 850 × 2030 mmEquipment weight740 kgInstallationIntegrated Split optional for this model. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT10
JDT20	≥2	Air-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserWater-cooledOptional compressor Equipment dimensions (L × W × H)1750 × 1100 × 2100 mmEquipment weight950 kgInstallationIntegrated Integrated machine arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT20
JDT30	≥3	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporativeOptional compressor Equipment dimensions (L × W × H)1850 × 1200 × 2200 mmEquipment weight1050 kgInstallationIntegrated Integrated machine arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT30
JDT50	≥5	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporativeOptional compressor Equipment dimensions (L × W × H)1650 × 1450 × 2500 mmEquipment weight1550 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT50
JDT100	≥10	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)2000 × 1650 × 3000 mmEquipment weight3500 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT100
JDT150	≥15	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)2000 × 1800 × 3000 mmEquipment weight4200 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT150
JDT200	≥20	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)3500 × 1800 × 3500 mmEquipment weight5680 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT200
JDT300	≥30	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)3500 × 1800 × 4000 mmEquipment weight7950 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT300
JDT400	≥40	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)3500 × 1800 × 4000 mmEquipment weight9140 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT400
JDT500	≥50	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)3500 × 2000 × 4500 mmEquipment weight11560 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT500
JDT600	≥60	Water-cooled	22 / 29 / 35	R22 / R404A / R507 / R407C
Optional condenserAir-cooled or evaporative Equipment dimensions (L × W × H)4000 × 3000 × 6000 mmEquipment weight15000 kgInstallationSplit Separate equipment arrangement. Project-specific detailsConfirm the final configuration Confirm final specifications and utilities in the technical offer. Inquire about JDT600

Design conditions Inlet water 20°C; maximum ambient 35°C for all JDT models. Confirm the applicable output at your site conditions in the final technical offer.

Configuration options The table shows the standard condenser and compressor brand. Ice size and refrigerant show available choices; open a model to view optional configurations. Final refrigerant, equipment dimensions, weight, utilities and supply scope are confirmed for the selected configuration and destination.

Not sure which capacity to choose?

Tell us how much ice you need, when you use it and how you plan to store it.

Ask for Selection Support

From a model to your machine

Configure the details
that matter on site.

The model defines a starting capacity. The final proposal defines the equipment package, utilities, installation arrangement and interfaces for your project.

Plan Your Configuration

01Cooling method & layout

Choose the heat-rejection arrangement around ambient conditions, cooling-water availability and available space. Confirm machine positioning, piping routes and maintenance access before the layout is finalized.

Supply of cooling towers, pumps and connecting pipework is defined in the quotation.

02Electrical supply & controls

Share the site voltage, frequency, phase and control requirements. Compressor selection, refrigerant suitability, electrical protection and external signals are confirmed for the chosen equipment and destination.

Final component brands and refrigerant are recorded in the technical offer.

03Storage & ice handling

Connect the ice machine to the way your business uses ice. Storage, screw conveying, weighing, packing interfaces and batching-system connections can be reviewed against your operating schedule and site layout.

Handling and storage equipment are separate scope items unless specifically included.
